Lab 1.6 - Open a Pull Request, pass the deployment check, merge¶

Level: 1 Contributor basics

Time: ~20 min (observed: median 21 min, 9 learners, fastest 12 min)

You will: have a robot check your work before a human does, read what it says, and put US-014 into the shared integration org.

The situation¶

Your branch is on GitHub. Now you ask for it to be merged, and something interesting happens: before anybody looks at it, a job takes your changes and rehearses the deployment into the integration org. Salesforce compiles everything and runs the tests, then throws the result away rather than keeping it, so the org is left exactly as it was. The job also runs the linters, and writes the whole verdict back on the Pull Request.

That is the whole point of this way of working. You find out your deployment fails while it is still yours to fix, not on release night.

Pull Request, in one sentence

A Pull Request asks for one branch to be folded into another, yours into integration here. It is a page on GitHub holding three things: what your branch changes, the result of every check that ran on it, and the conversation about whether it should go in. Nothing moves until somebody clicks Merge. Everyone shortens it to "PR".

Before you start¶

Lab 1.5 finished: the branch is pushed to your fork (your own copy of the course repository on GitHub, for example github.com/my-username/sfdx-hardis-training)
Lab 1.2 finished: Set up my training environment turned Actions on and set the CI credential

Steps¶

1. Open the Pull Request¶

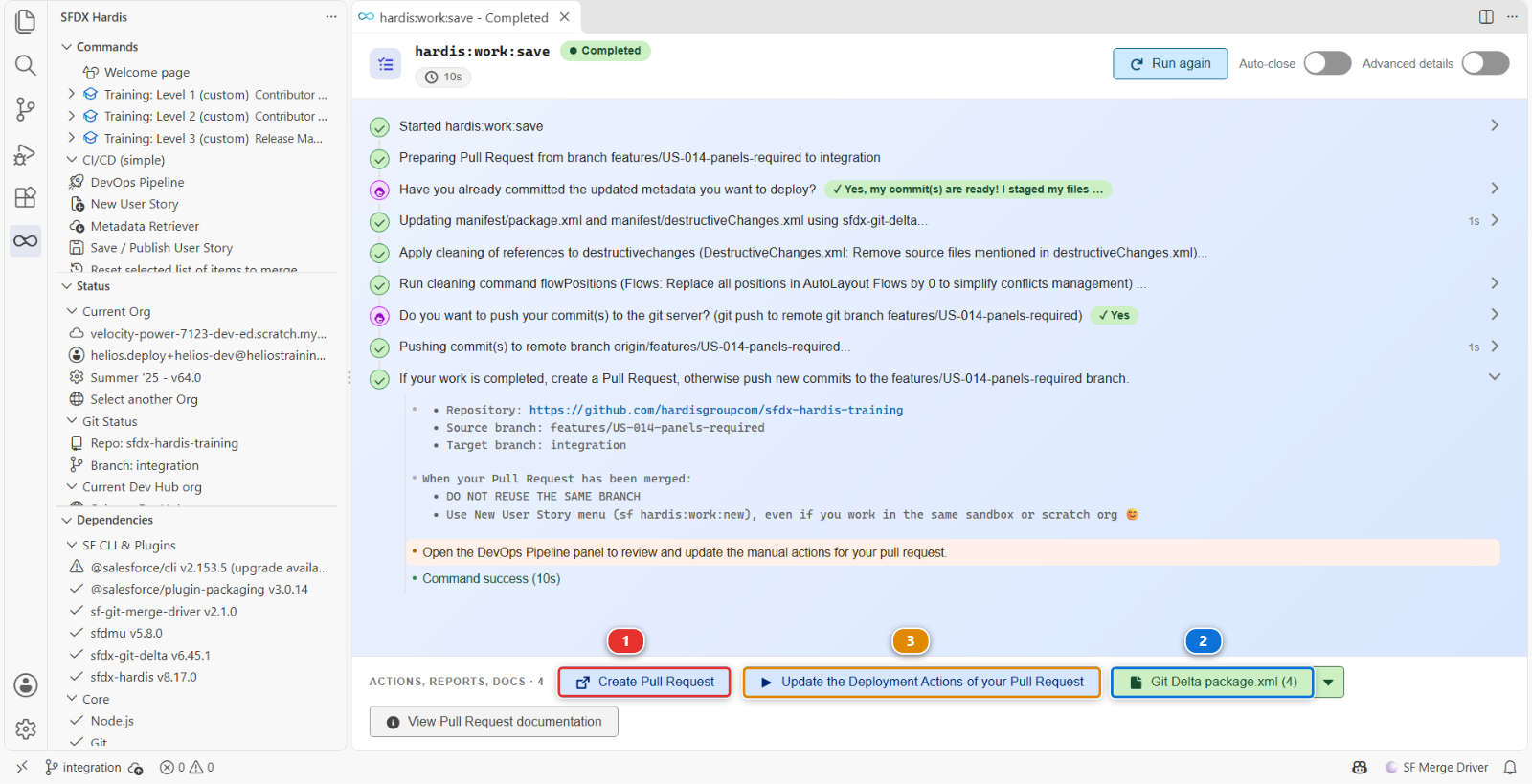

Go back to the panel where Save / Publish finished in Lab 1.5. Along the bottom is a bar of actions, and the first one is Create Pull Request (1). Click it: the extension opens GitHub on the right page, with base and head already filled in.

Two other things in that bar are worth knowing now, because later labs use them. (2) is the package.xml the command generated, the one you read in Lab 1.5 step 6. (3) opens the Deployment Actions of this Pull Request, which is what the whole of Lab 2.3 is about.

If you closed that panel

Nothing is lost, and there are two ways back. Run Save / Publish my User Story again: every step checks before it acts, there is nothing left to commit or push, and it finishes on the same actions bar. Or open your fork (github.com/my-username/sfdx-hardis-training) on GitHub, which shows a banner offering to open a Pull Request for the branch you just pushed. The + PR pill you may have noticed in the DevOps Pipeline diagram is for major branches, not for your feature branch.

Check two things before clicking, every single time:

base is integration, in your fork
compare is features/US-014-panels-required

Check the base repository

GitHub defaults the base of a fork's Pull Request to the original repository. If the base says hardisgroupcom/sfdx-hardis-training, click it and change it to your own fork. A Pull Request opened upstream cannot reach your org, will never turn green, and adds noise to a repository a few hundred other learners are using.

The title reads Features/us 014 panels required: GitHub makes it up from the branch name whenever a branch carries more than one commit, and yours carries two, the one you wrote and the one Save / Publish added. Replace it with the first line of the commit message you wrote in Lab 1.5 step 4, US-014 Panels Required on Installation.

The description box is not empty: this repository ships a Pull Request template, and GitHub puts it there for you. Replace the whole of it. Under What this changes, paste the rest of that same commit message, the paragraph explaining why; fill in the story id; and say where a reviewer should look. Delete the comment lines and any heading you have nothing to put under. A template is a reminder of what to write, not something to hand in as it came.

It is what the reviewer reads first. Click Create pull request.

2. Watch the checks run¶

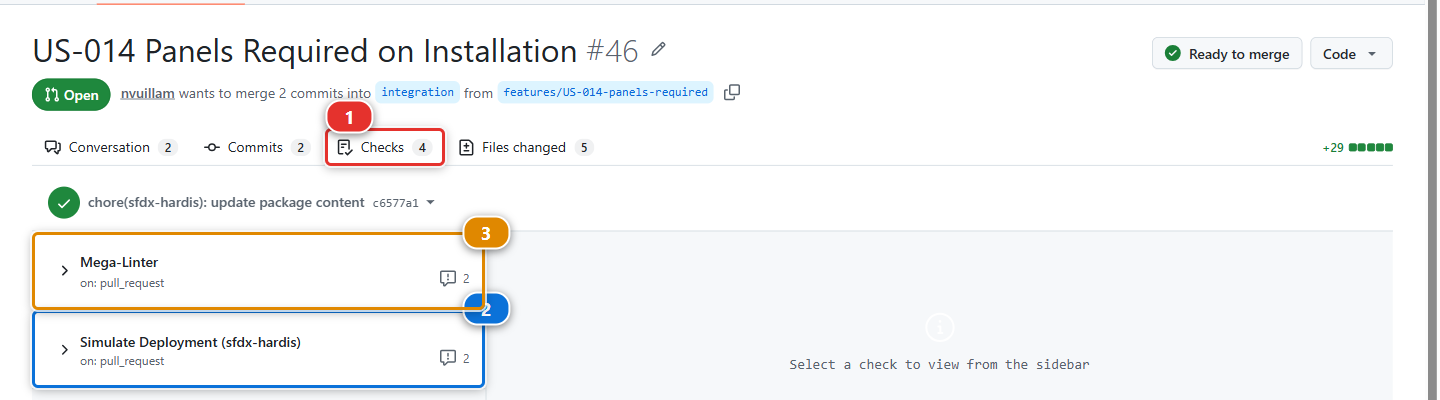

Open the Checks tab (1). Two of them matter here, and both start on their own:

Check	What it does
Simulate Deployment (sfdx-hardis) (2)	Deploys your metadata into `helios-integration` in validation mode, and runs the Apex tests
Mega-Linter (3)	Runs the code quality linters over the repository

Click either one to read its log while it runs. The deployment check takes about two minutes, and you can watch it authenticate with your secret, work out what changed, and start the deployment.

No checks at all? Actions are off on your fork

If the Checks tab is empty and nothing ever starts, GitHub has not enabled Actions on your copy of the repository. It does that to every new fork, on purpose: a fork could otherwise run somebody else's workflows in your account the moment you made it. Set up my training environment turns them on when it can, and says so when it cannot.

Open the Actions tab of your fork (github.com/my-username/sfdx-hardis-training) and click I understand my workflows, go ahead and enable them. One click. Then come back here and run Training: Level 1 > Trigger my workflows: it pushes a one-line change to your branch, which is what makes GitHub start the checks on a Pull Request that opened while Actions were off.

This is a fork thing, and only a fork thing. On a real project you join a repository whose automation is already running, and there is nothing to enable.

3. Read the sfdx-hardis comment¶

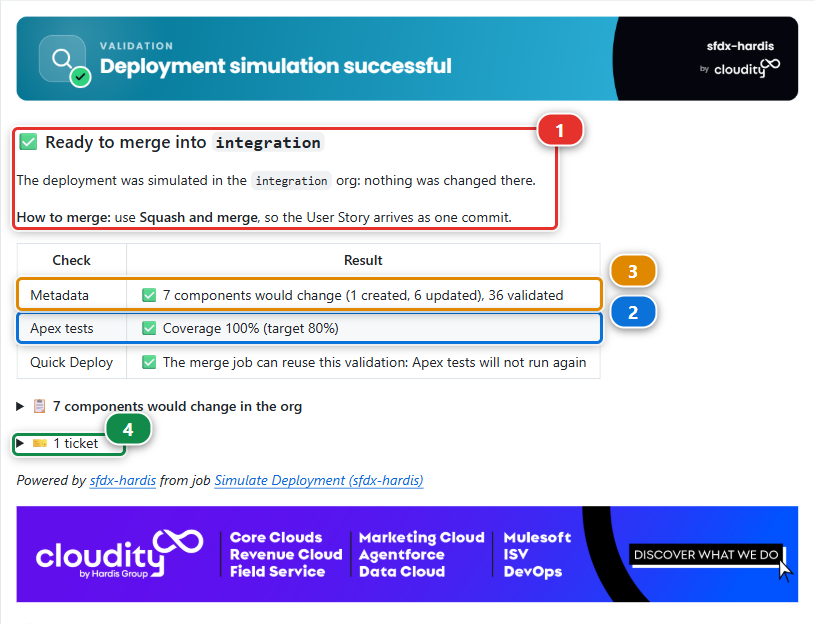

When the deployment check finishes, sfdx-hardis writes a comment on the Conversation tab. It is the most useful thing on the page.

The verdict (1), under the banner: ✅ Ready to merge into integration, a line saying the deployment was only simulated in the integration org, so nothing changed there, and How to merge: use Squash and merge, so the User Story arrives as one commit. Step 4 does exactly that
Apex tests (2), a row of the Check | Result table under the verdict: the coverage, against the target this project sets
Metadata (3), the first row of that table: what would change. Not a list of your files: sfdx-hardis sends the whole package, manifest/package.xml, and Salesforce answers how much of it differs: 7 components would change (1 created, 6 updated), 36 validated. The one created is your field, and the updated ones include the layout and the two permission sets you changed. Further down, click 📋 7 components would change in the org to open a table of those changes, per type of component: the field is the CustomField row
Tickets (4), folded under 🎫 1 ticket near the bottom: the stories it recognised in your branch name and commit messages, each with its title and a link to its page in the backlog

The table has one more row, Quick Deploy: the merge job can reuse this validation, so the Apex tests will not run again. Step 5 shows it at work. The comment ends with the name of the job that wrote it.

Under the hood: where the story titles come from

The course has no ticketing tool: its backlog is the ticketing system. config/.sfdx-hardis.yml declares it with three keys of the generic ticketing provider:

genericTicketingProviderRegex: "(US-[0-9]{3})" finds US-014 in the branch name and the commits
genericTicketingProviderUrlBuilder turns it into the link, .../BACKLOG/US-014/
genericTicketingProviderDetailsUrlBuilder points at .../BACKLOG/US-014.json, a small file the course site publishes for each story. sfdx-hardis reads its subject and writes it next to the link

A real project points these keys at its own ticketing tool, or uses the JIRA, Azure Boards or ServiceNow connector instead.

Your counts may differ by one or two

The picture is a real comment from a real run of this lab, kept as it came out. A component Salesforce stores slightly differently in your org can move from unchanged to updated, and that is not a problem: what matters is that your field is the one created.

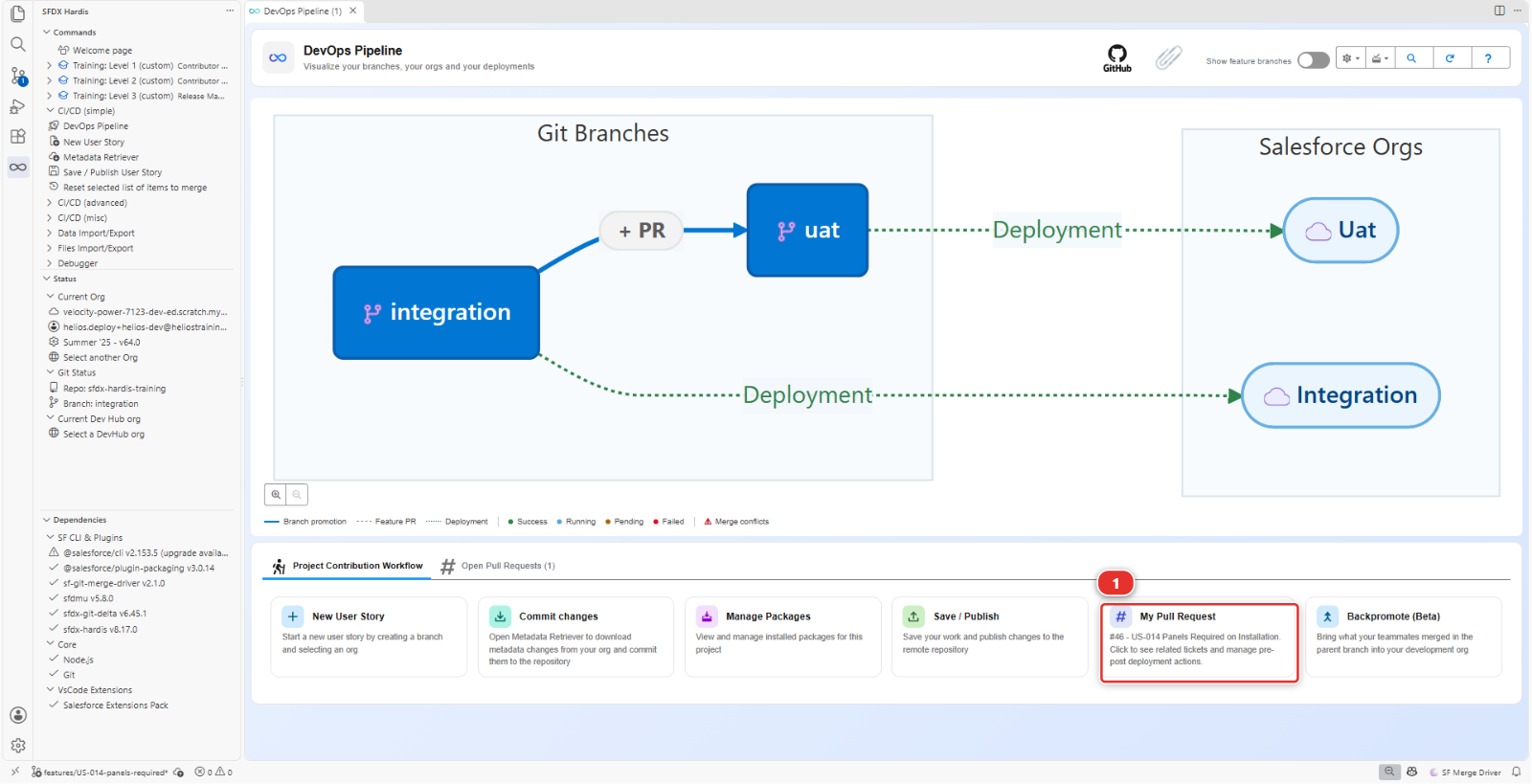

The same comment, without leaving VS Code. Go back to VS Code and open the DevOps Pipeline panel. Under Project Contribution Workflow, the My Pull Request card (1) now names your Pull Request. Click it.

If the card still reads Pull Request not created yet, the panel is showing what it knew before you created it: click Refresh in its top bar, and the card catches up. It also does so by itself within a minute.

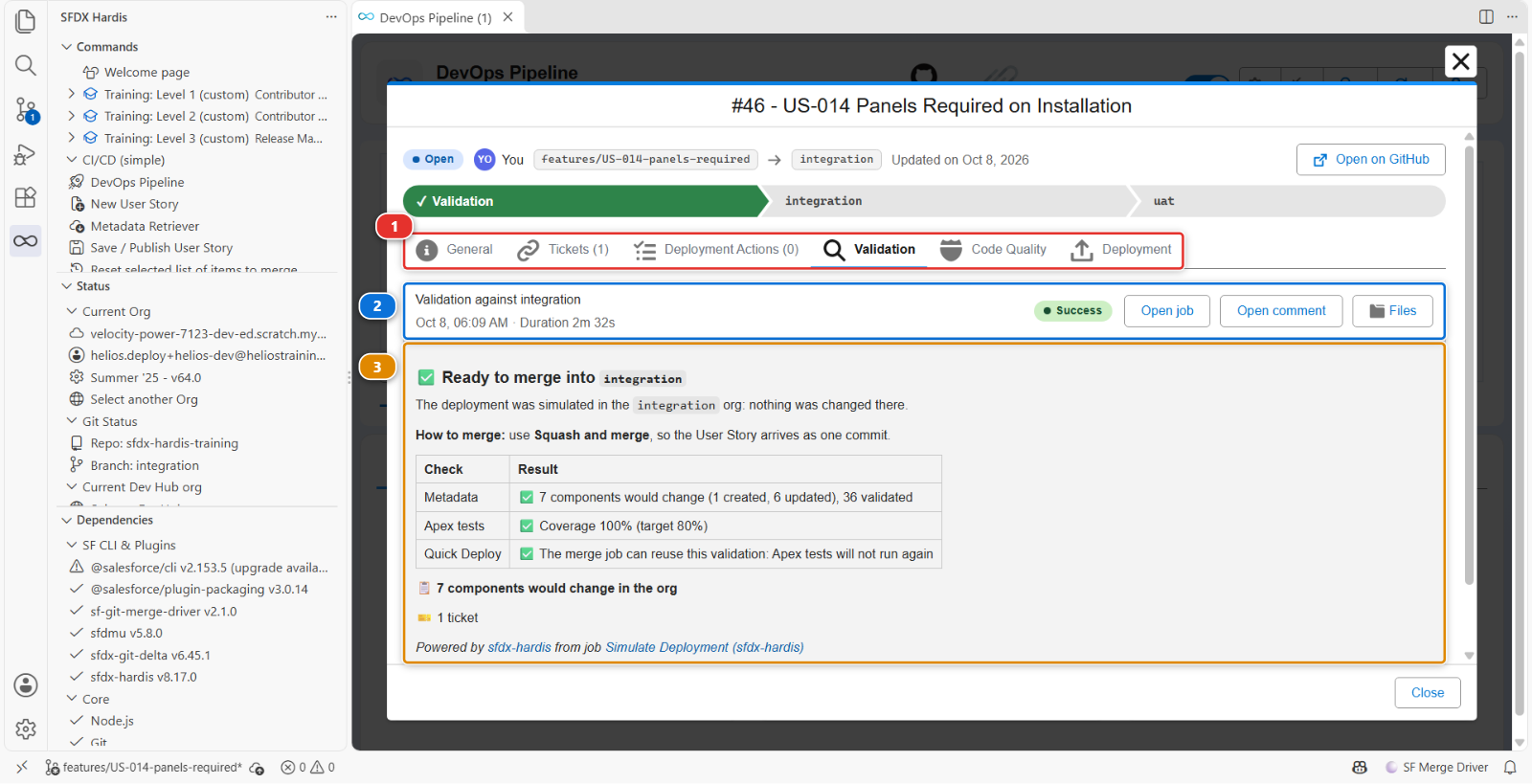

A window opens on your Pull Request, and it gathers what GitHub spreads over several pages:

The tabs (1): Validation is the deployment check, Code Quality is Mega-Linter, and Deployment fills in once you have merged. Tickets holds the story found in your branch name
The job (2): its result, how long it ran, Open job for its log on GitHub, Open comment for the comment on GitHub, and Files
The comment (3), the one you have just read, word for word

Your number is not #46, and your comment opens with the banner you saw on GitHub.

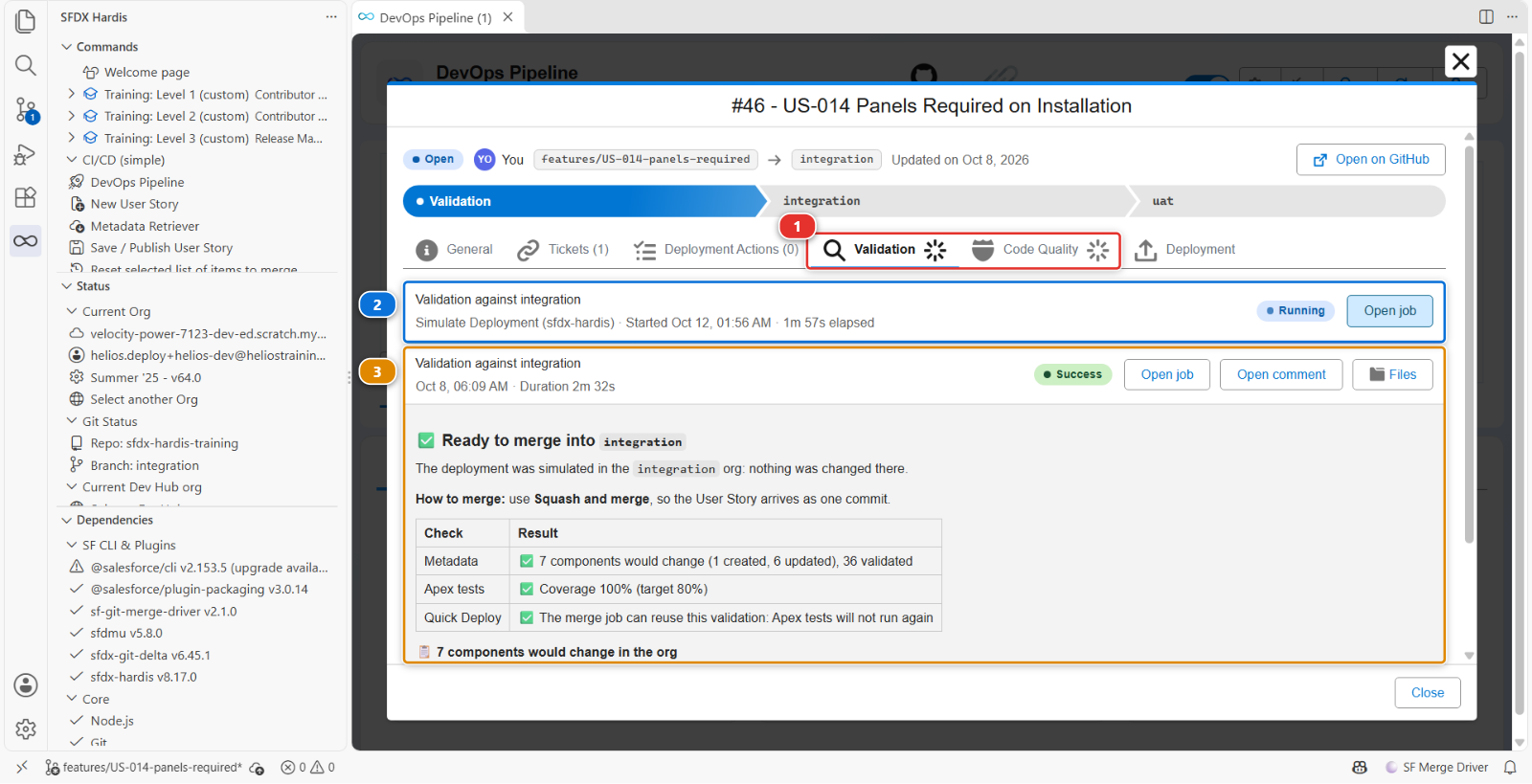

Opened it while a check was still running? Then the window says so, and you do not need GitHub to know where the check stands:

The tab (1) carries a spinner for as long as its job runs, Code Quality included, and the Validation step above the tabs moves
The running job (2) comes first: when it started, for how long it has been going on, counted every second, and Open job for its log on GitHub
Under it (3), what the previous run left. On a first Pull Request there is nothing there yet: the comment arrives when the job ends

Nothing to click: the window asks GitHub again every twenty seconds. When the job ends, its row leaves and the comment takes its place, with the time the job took.

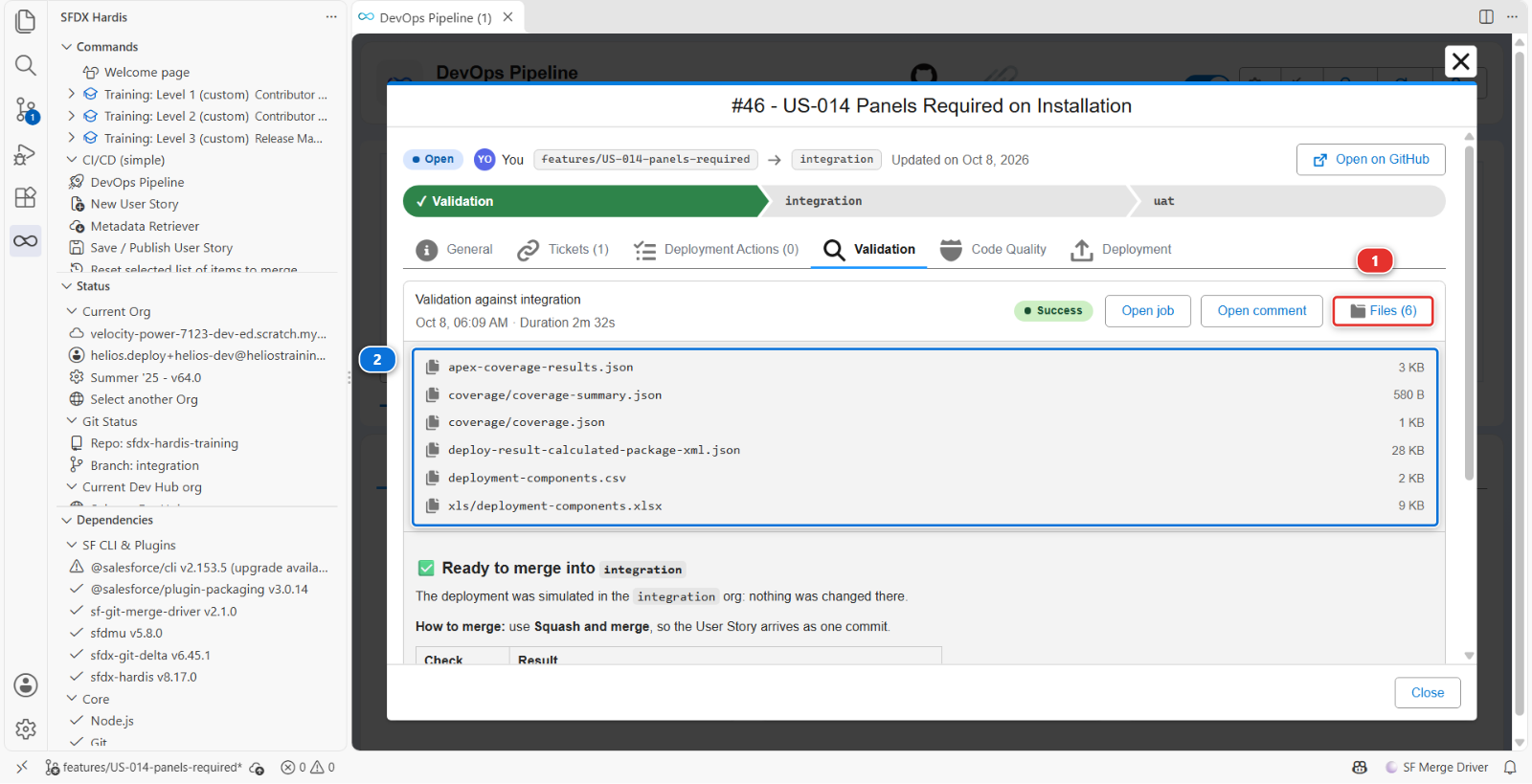

Now click Files (1). The check kept its reports, and sfdx-hardis lists them under the job (2). Click one to open it in VS Code: deployment-components.csv is the list behind 7 components would change, one row per component.

You will not need these files today. They are there for the day a check goes red and the comment is not enough, and they save you a trip to GitHub.

Under the hood: where the files come from

The check job publishes its hardis-report folder on GitHub, as an artifact named sfdx-hardis reports. Files runs sf hardis:git:artifacts:download with the address of the job: it asks GitHub for the artifacts of that run, downloads them and unzips them into hardis-report/job-artifacts/ of your project. Git ignores that folder, so the copies never end up in a commit. Click Files again later and nothing is downloaded twice, unless the job ran again.

GitHub does not keep artifacts forever. Once they are gone, the files you already downloaded stay, and a job you never opened says its files have expired.

Command documentation: hardis:git:artifacts:download

No Files button?

It needs a recent sfdx-hardis. Open the Setup panel of Lab 1.1: when the sfdx-hardis card reads Upgrade, click it, then reopen the window. Open job leads to the same files in the meantime: the Summary of the run, then Artifacts.

4. Merge¶

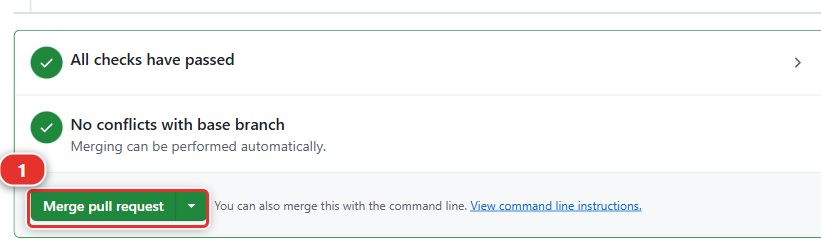

Both checks green, the comment says Ready to merge. Back on the Conversation tab, scroll to the bottom: the merge box says All checks have passed and No conflicts with base branch, and the button is live.

It is live because both are green. Setting up your environment in Lab 1.2 protected integration: while a check is running or red, the box reads Merging is blocked and the button stays grey, for you as for anybody else. That is the rule of every real pipeline, and here GitHub enforces it rather than trusting everybody to read the checks first.

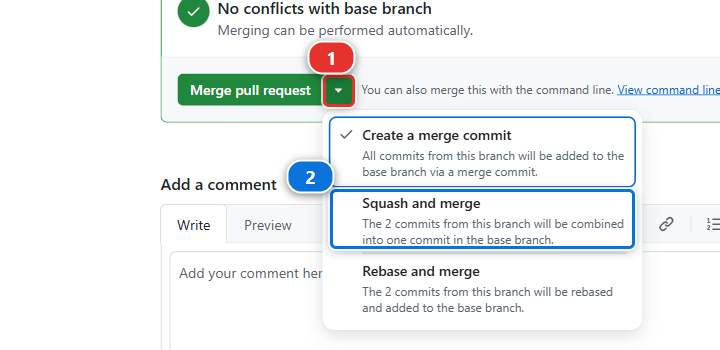

The green button has a small arrow on its right (1). Click the arrow, choose Squash and merge (2), then click Squash and merge and Confirm squash and merge.

Squash turns the commits of your branch into a single commit on integration, titled like your Pull Request. The story shows as one line in the history of integration instead of every intermediate commit you made while building it, and one line is what the release manager reads when they promote.

Squash is for feature Pull Requests, and for nothing else

Squash and merge is right in exactly one case: a Pull Request from a feature branch, a User Story or a fix, into its major branch. Everywhere else, use the plain Merge pull request: a retrofit, a promotion branch, and every Pull Request from one major branch to the next (integration to uat, uat to preprod, preprod to main). Those merges must keep the commits as they are, because the next promotion and the next retrofit compare branches commit by commit, and a squash there makes git believe the work was never merged. Level 3 comes back to this.

GitHub remembers the method you picked last, so check the button label before every merge.

You do not have to delete the branch: your fork does it at the merge, and GitHub says so under the merge box. A merged branch that stays around is one more thing in everyone's list for no benefit, so a real project turns the same setting on (Settings > General > Automatically delete head branches). If the branch is still there, your fork was set up before the course turned it on: click Delete branch, and tick that setting in your fork.

What the linter is for, and why its comment can show a warning

MegaLinter reads the whole repository, not only your change, and reports anything that breaks the project's quality rules. It writes its verdict on the Pull Request the same way the deployment check does. Your change broke none of them, so the check is green, and the comment may still read Success with warnings, with a ⚠️ line for a linter the project keeps non-blocking, such as the auditor of the GitHub Actions workflow files. Whether a finding fails the job is a choice the project makes in .mega-linter.yml, and a job that fails blocks the merge, like the deployment check. Lab 2.5 has you meet one finding that only warns, and one check that blocks.

The yellow banner that follows

Once integration has moved, the home page of your fork may show a yellow banner: integration had recent pushes, with a Compare & pull request button. Leave it alone. It offers to send integration to the original repository, the one every learner forked, and that is never what you want. If you opened one by mistake, Close pull request at the bottom of its page undoes it, and nothing of yours is lost: your integration branch lives in your fork and stays there.

5. Watch the real deployment¶

Merging into integration starts a second job, and this one is not a check: it deploys for real.

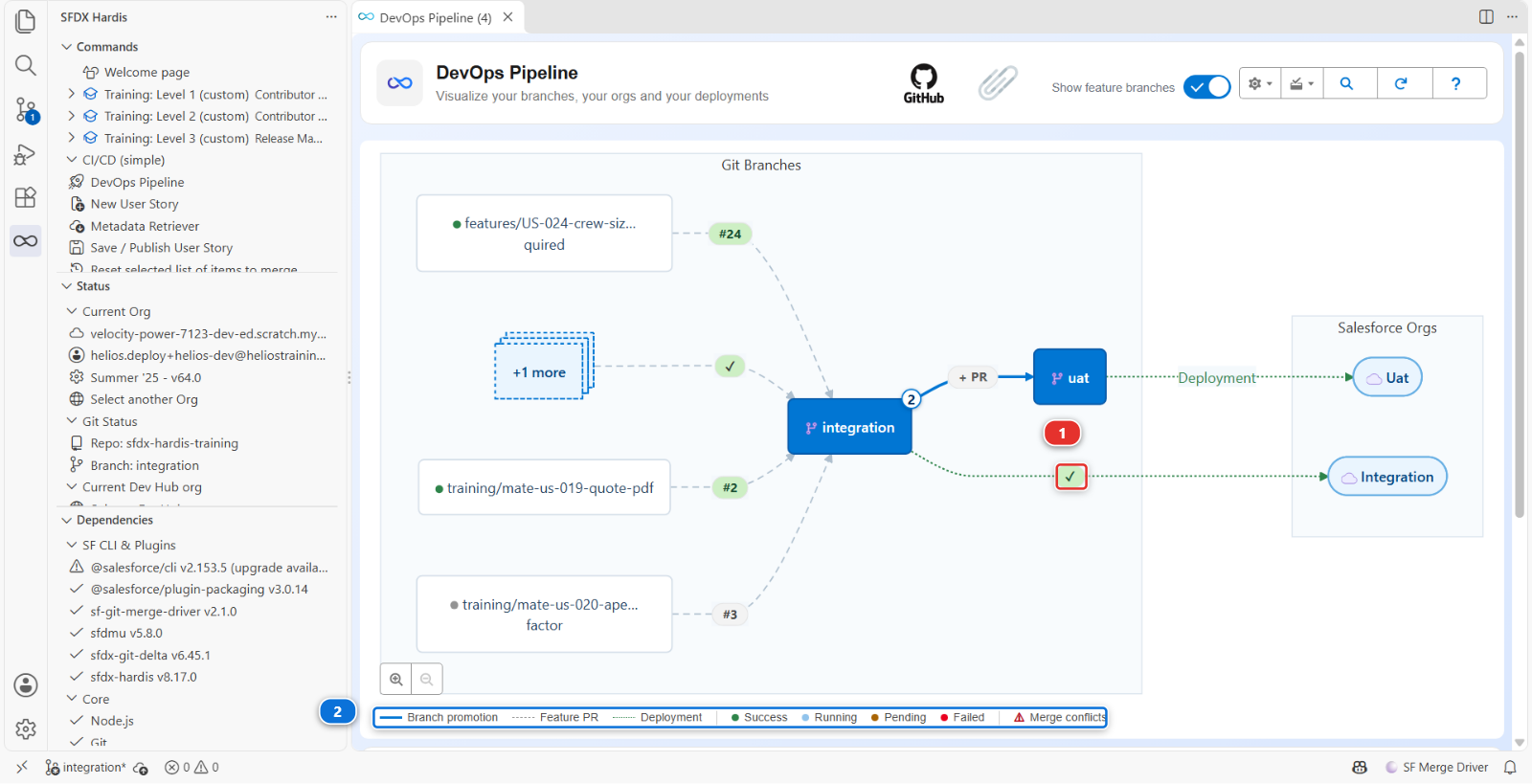

Go back to VS Code and open the DevOps Pipeline panel. The arrow from the integration branch to its org carries a pill, and while the deployment runs that pill says so and pulses. This is the screen to watch, and the one you will keep open on a real project: it answers "is my work in the org yet" without leaving the editor.

The picture was taken later in the course, with teammates' branches on the left of integration. Yours shows only integration and uat: the pill (1) on the arrow to the org is the part to look at.

The pill is also a link: click it and GitHub opens on the log of that run, Process Deployment (sfdx-hardis), which takes about three minutes. You do not need to read it today. It is there for the day something fails, and Lab 3.3 is the lab that reads one line by line.

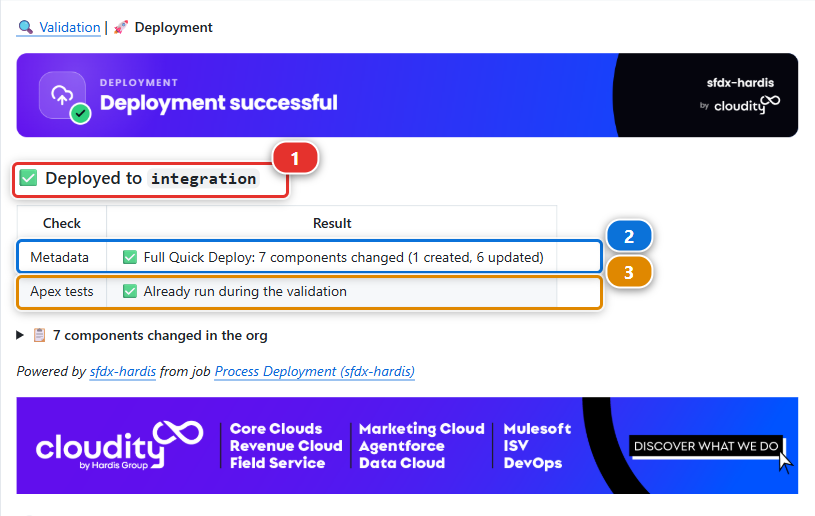

When the deployment finishes, it writes a second comment on the Pull Request you just merged:

The verdict (1): ✅ Deployed to integration, and this time the org really changed
Metadata (2), in the same shape as the check said it would, plus how it was deployed: ✅ Full Quick Deploy: 7 components changed (1 created, 6 updated) where the check said 7 components would change. Full, because this project sends the whole package every time. Quick Deploy, because the merge job did not start from nothing: it deployed the validation the Pull Request check had already done, which is why it took two minutes rather than five
Apex tests (3): Already run during the validation. The Quick Deploy reused the test run of the check, so no test ran again

Then open helios-integration from Orgs Manager and look at an installation.

Panels Required is there. You built it in one org and it arrived in another, and you never deployed anything by hand.

helios-uat does not have it, and it should not yet. Work moves from integration to uat when a release manager promotes it, several stories at a time, and that is Level 3.

Under the hood: what the two jobs ran

The Pull Request check ran:

sf hardis:project:deploy:smart --check

--check is a validation deployment: Salesforce compiles everything, runs the tests and reports what it would do, then throws the result away. Your org is not modified. That is why it is safe to run on every push.

The job after the merge ran the same command without --check, against the same org. Same code, same configuration, one flag apart. A check that passes and a deployment that then fails is rare, and when it happens it is almost always because somebody changed the target org by hand in between.

Both jobs authenticate first, through the sfdx-hardis hook that reads SFDX_AUTH_URL_INTEGRATION, the secret Set up my training environment wrote in Lab 1.2. The workflow files are in .github/workflows/, and they are worth reading once: they are about thirty lines each.

The test level comes from config/.sfdx-hardis.yml:

testLevel: RunLocalTests
apexTestsMinCoverageOrgWide: 80

RunLocalTests runs every test in the org except those from managed packages. 75% is the Salesforce minimum, and this project asks for 80, like most real ones.

Command documentation: hardis:project:deploy:smart

What you should see¶

The Pull Request merged, with a green sfdx-hardis comment above the merge
The Process Deployment (sfdx-hardis) run green in the Actions tab
Panels Required present on the Installation object in helios-integration

That is one full delivery loop. Every story for the rest of your life on this project is this loop.

If it goes wrong

The My Pull Request card still says Pull Request not created yet. Three causes, in the order they happen:

the panel has not looked since you created the Pull Request. Click Refresh in the top bar of the DevOps Pipeline panel
VS Code is on another branch. The card is about the branch you are on: check the bottom left of the status bar, and if it does not read features/US-014-panels-required, click it and pick that branch
the Pull Request was opened on the original repository instead of your fork. Its address then starts with github.com/hardisgroupcom/, and the card only looks in your fork. Close it there, and open it again as step 1 says, with base in your own fork

None of them stops the lab: the checks, the comment and the merge of steps 2 to 4 all happen on GitHub, and that is where the lab is checked.

The checks never start. Actions are still disabled on your fork (github.com/my-username/sfdx-hardis-training). GitHub hides that switch behind a banner no command can reach: open the Actions tab of your fork and click I understand my workflows, go ahead and enable them. Re-running Set up my training environment will not do it for you, because there is no API behind that banner.

Your branch was pushed while they were off, so nothing ran on it. Push it again, with one more commit on the branch, and both checks start. Reopening the Pull Request is not enough on its own: that re-runs the deployment check, while Mega-Linter runs on the push, and the merge stays blocked on the check that never came.

The check fails at authentication: No authentication found for org integration. The secret is missing, misnamed, or truncated. It must be named exactly SFDX_AUTH_URL_INTEGRATION and its value must start with force://. The quickest repair is Training: Level 1 > Set up my training environment, which writes it again. Then open the Checks tab of your Pull Request and click Re-run all jobs.

The check fails with INVALID_CROSS_REFERENCE_KEY on the permission set. The permission set grants a field that is not in your package. You retrieved the permission set without the field. Redo Lab 1.5 step 3 and take both.

The check is stuck as "Expected". The workflow is waiting for a job that will never run, usually because the base of the Pull Request is the original repository and not your fork. Close it and open it again with the right base.

The merge box says Merging is blocked, and the button is grey. A required check is still running, or it failed. Wait for it, or open it from the Checks tab, fix what it reports on your branch, and push again: the checks run again on their own. There is no way around it, and there is not meant to be.

A commit you did not make, chore(megalinter): apply linters fixes, is on your branch. MegaLinter reformatted a file of your Pull Request and pushed the result. GitHub does not start the checks again for a commit its own robot pushed, so they are missing or red on it and the merge stays blocked. Pull in the Source Control panel to bring the robot's commit to your computer, then run Training: Level 1 > Trigger my workflows: a push of yours is what starts the checks again.

The deployment succeeds but the field is not in the org. Open the folded 📋 ... components would change in the org section of the comment, under the table of checks. If it has no CustomField row, the field is not in manifest/package.xml, and Lab 1.5 step 6 is where you read it.

Check your work¶

Welcome page > Training: Level 1 > Check my work, then pick Lab 1.6.

Go deeper¶

Next: Lab 1.7 - Capstone: deliver a User Story on your own
