Lab 3.1 - Configure the CI/CD pipeline up to production¶

Level: 3 Release Manager

Time: ~50 min

You will: turn a two-stage pipeline into a four-stage one that reaches production, give the two new stages their org and a credential a real project can live with, and publish all of it the way every change reaches a major branch: through a Pull Request.

The situation¶

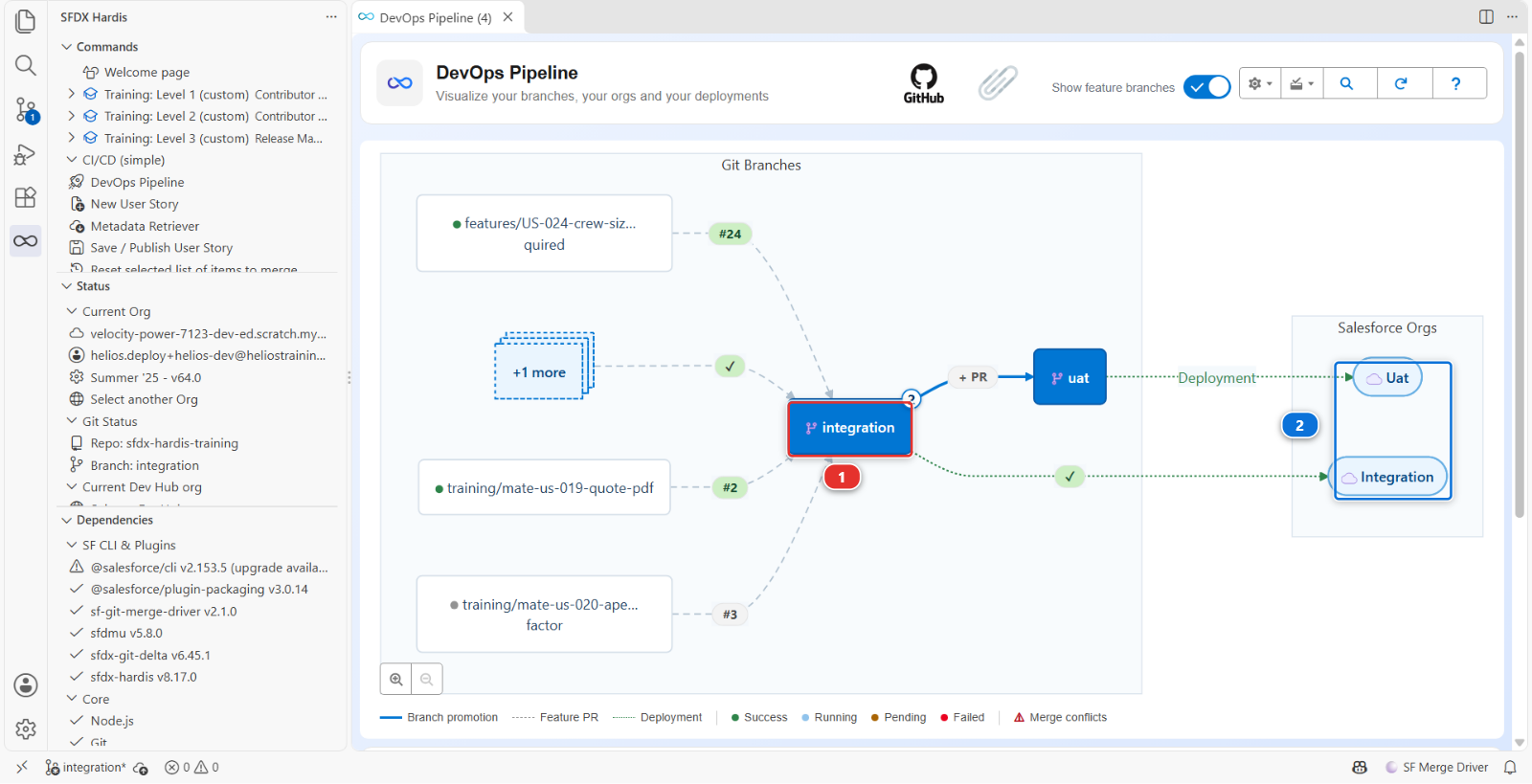

Open the DevOps Pipeline panel and look at what Victor left.

integration (1) and uat, each with its org (2), and the feature branches your teammates have in flight. Work reaches the business testers, and then it stops. There is no preprod, and main, production, is a branch nothing deploys: every release so far reached production by hand, which is exactly the kind of release nobody can say anything about afterwards.

And the two stages that do exist reach their orgs through a shortcut. The CI logs into helios-integration and helios-uat with SFDX_AUTH_URL_INTEGRATION and SFDX_AUTH_URL_UAT, two secrets holding long-lived OAuth refresh tokens. Level 1 told you they were an exception for throwaway scratch orgs. Three things are wrong with them on a real project:

1. They cannot be rotated. Changing one means authenticating again, as a human, in a browser
2. They are bearer credentials with no scope. Whoever reads the secret has everything that user has, from anywhere, until it is revoked
3. They are tied to a person. When that person leaves or their token is reset, the pipeline stops, and nobody knows why

The alternative is a JWT flow through an External Client App: a certificate you hold, a pre-authorised user, no password anywhere, and revocation by deleting one app. sfdx-hardis sets it up for you, org by org, and writes the branch configuration while it is at it.

That is your first week. None of it is unusual: most projects start with the stages they need on day one, and finishing the pipeline waits until the day somebody needs to release properly.

Before you start¶

• Levels 1 and 2 finished
• helios-prod still connected in Orgs Manager. It is the Developer Edition org you signed up for in Level 1, and the Dev Hub of your scratch orgs. From this lab on, it is also production
• One more free Developer Edition org, signed up at developer.salesforce.com/signup exactly like the first one, and connected in Orgs Manager with the alias helios-preprod
• Both seeded: Welcome page > Training: Level 3 > Set up one of my training orgs, once for helios-preprod and once for helios-prod. It first sets the language of your user to English in that org, if it is not already: every org of a pipeline is worked in one language, because Salesforce names the page layouts it creates in the language of the user at work, and a Profile assigns a page layout by its name
• SFDX_AUTH_URL_INTEGRATION and SFDX_AUTH_URL_UAT still in your fork, as since Level 1: this lab leaves them alone
• On integration in VS Code, with nothing waiting in the Source Control panel

Steps¶

1. Decide the shape¶

Four questions, and their answers are the whole pipeline:

If you cannot state them in one sentence each, configuring them will not help.

preprod earns its place in two ways. It is the last rehearsal before production, an org that holds what production holds and that nobody works in, so a release that deploys there cleanly has very few surprises left. And it is where hotfixes start, which Lab 3.7 is about.

The order of this lab follows from one rule: a branch has to exist before an org can be attached to it. So the branches come first, then their protection, then their orgs.

2. Create the preprod branch¶

main already exists: it is the default branch of every fork. preprod does not, and it starts from main, because it holds what production holds.

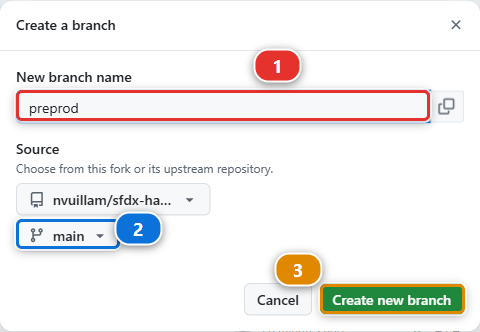

In your fork (your own copy of the course repository on GitHub, for example github.com/my-username/sfdx-hardis-training), open the Branches page: the branch count next to the branch selector, or github.com/my-username/sfdx-hardis-training/branches. Click New branch at the top right. Type preprod as the name (1), leave the source on your fork and main (2), and click Create new branch (3).

Then tell VS Code: in the Source Control panel, ... menu, Pull, Push > Fetch. The next steps list the branches of your fork, and a branch VS Code has not fetched is not in the list.

3. Protect preprod and main¶

From now on, nobody pushes to a major branch: not a contributor, not you. Every change reaches integration, uat, preprod and main through a Pull Request whose checks are green, and GitHub enforces it rather than trusting everybody to remember. Since Lab 1.2, integration and uat work that way: setting up the environment protected them. preprod and main are yours to protect, and a release manager does it the day the branches join the pipeline, not after the first bad merge.

Your fork gives you a second reason. It deletes a branch once its Pull Request is merged, and a release is a Pull Request whose source is preprod. Only a protected branch is kept: without its rule, preprod would go with your first release.

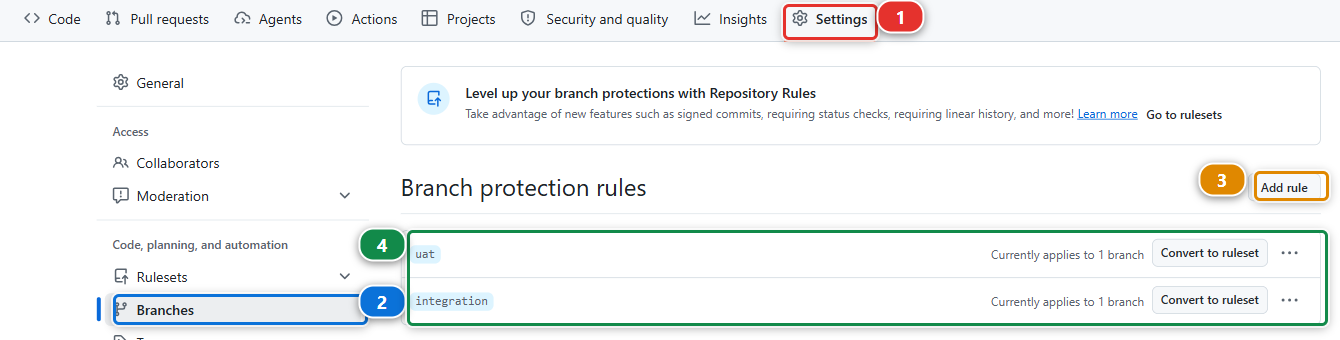

In your fork (github.com/my-username/sfdx-hardis-training), click Settings (1), then Branches (2) in the left menu. The two rules (4) are the ones setting up your environment created in Lab 1.2. Click Add rule (3).

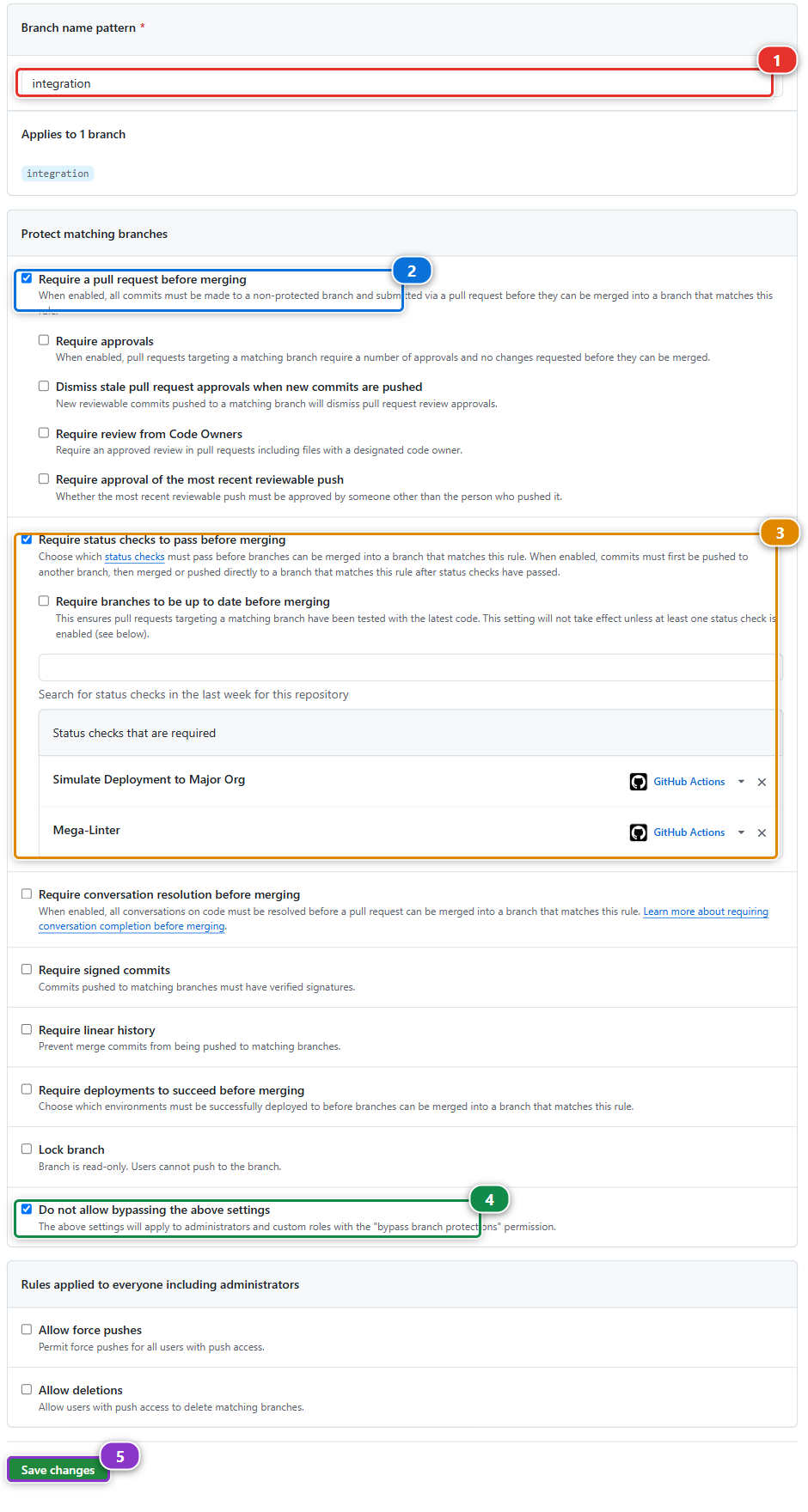

The form is long, and five things on it matter. The picture is the integration rule, opened from the list above, so it shows the values you are about to set:

1. Branch name pattern (1): preprod
2. Tick Require a pull request before merging (2), and untick Require approvals under it: you work alone here, and GitHub never lets you approve your own Pull Request. On a real project, ask for one approval
3. Tick Require status checks to pass before merging (3). A search box appears under it. Type Simulate and pick Simulate Deployment to Major Org, then type Mega and pick Mega-Linter. Both land in Status checks that are required: they are the two checks every Pull Request of this course runs
4. Tick Do not allow bypassing the above settings (4). Without it, the owner of the repository, you, still gets a checkbox to push or merge anyway
5. Click Create at the bottom. On an existing rule the same button reads Save changes (5)

Then Add rule again, for main, with the same settings. Back on the list: four rules, integration, uat, preprod and main.

The search box only suggests checks that ran on this repository in the last seven days. Both ran on your Level 2 Pull Requests, so they are there unless you took a long break: in that case open any Pull Request into integration first, and its checks put them back in the list.

gh api -X PUT repos/<your-handle>/sfdx-hardis-training/branches/preprod/protection \
  -F "required_pull_request_reviews[required_approving_review_count]=0" \
  -f "required_status_checks[contexts][]=Simulate Deployment to Major Org" \
  -f "required_status_checks[contexts][]=Mega-Linter" \
  -F "required_status_checks[strict]=false" -F enforce_admins=true -F restrictions=null

4. Start a User Story for the configuration¶

Every file this lab writes ends up on integration, and integration takes nothing but Pull Requests: the protection you just looked at is what refuses the rest. So before writing a single file, get onto a branch of your own. The configuration is a change like any other, it travels up the pipeline with the rest of the work, and it gets a User Story like any other.

In the DevOps Pipeline panel, under Project Contribution Workflow (1), click New User Story (2), as in Lab 1.3.

1. The first line reads Automatically selected target branch is integration. Right: preprod only joins that list in step 9
2. What type of User Story do you want to create? - Feature: a new capability or an improvement
3. What is the name of your new User Story? - US-050-pipeline-up-to-production. The course checks User Story names against the US-nnn pattern, and US-050 is the backlog story for this work
4. Which Salesforce org do you want to work in? - the last answer, 🤠 I'm hardcore, I don't need an org !, the one with no org at all. Nothing in this lab is built in an org: you edit the project's files, and the commands write into the orgs themselves

The command creates features/US-050-pipeline-up-to-production from integration and checks it out. Everything the next steps write lands there.

5. Configure preprod and its org: Add/Configure Org¶

Now the orgs. One command does it all for a branch: it writes the branch configuration, the org it deploys to and the branch it merges into, creates the credential the CI logs in with, and deploys the External Client App into the org. You run it once per branch, starting with preprod.

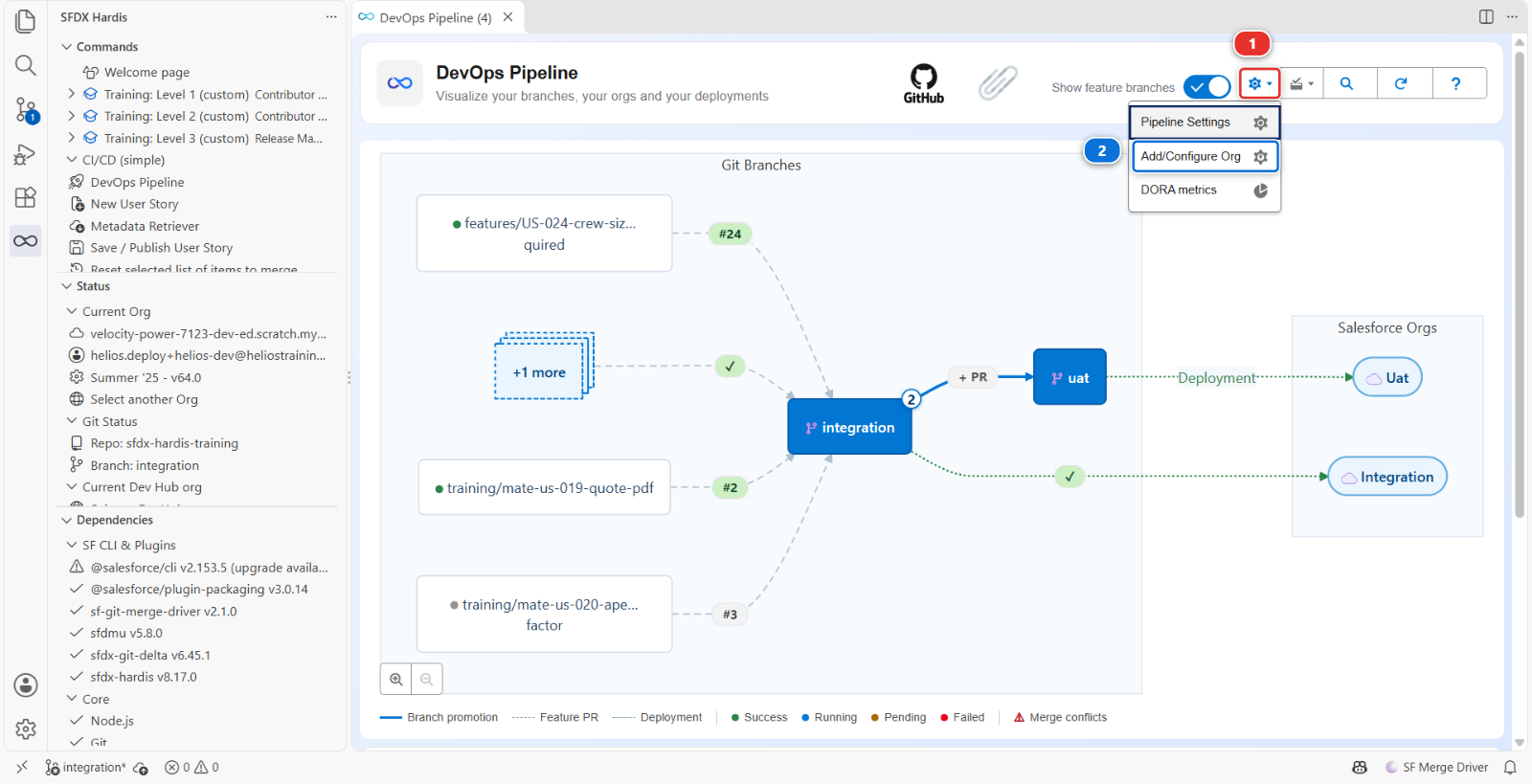

In the DevOps Pipeline panel, click the gear (1) at the top right and choose Add/Configure Org (2).

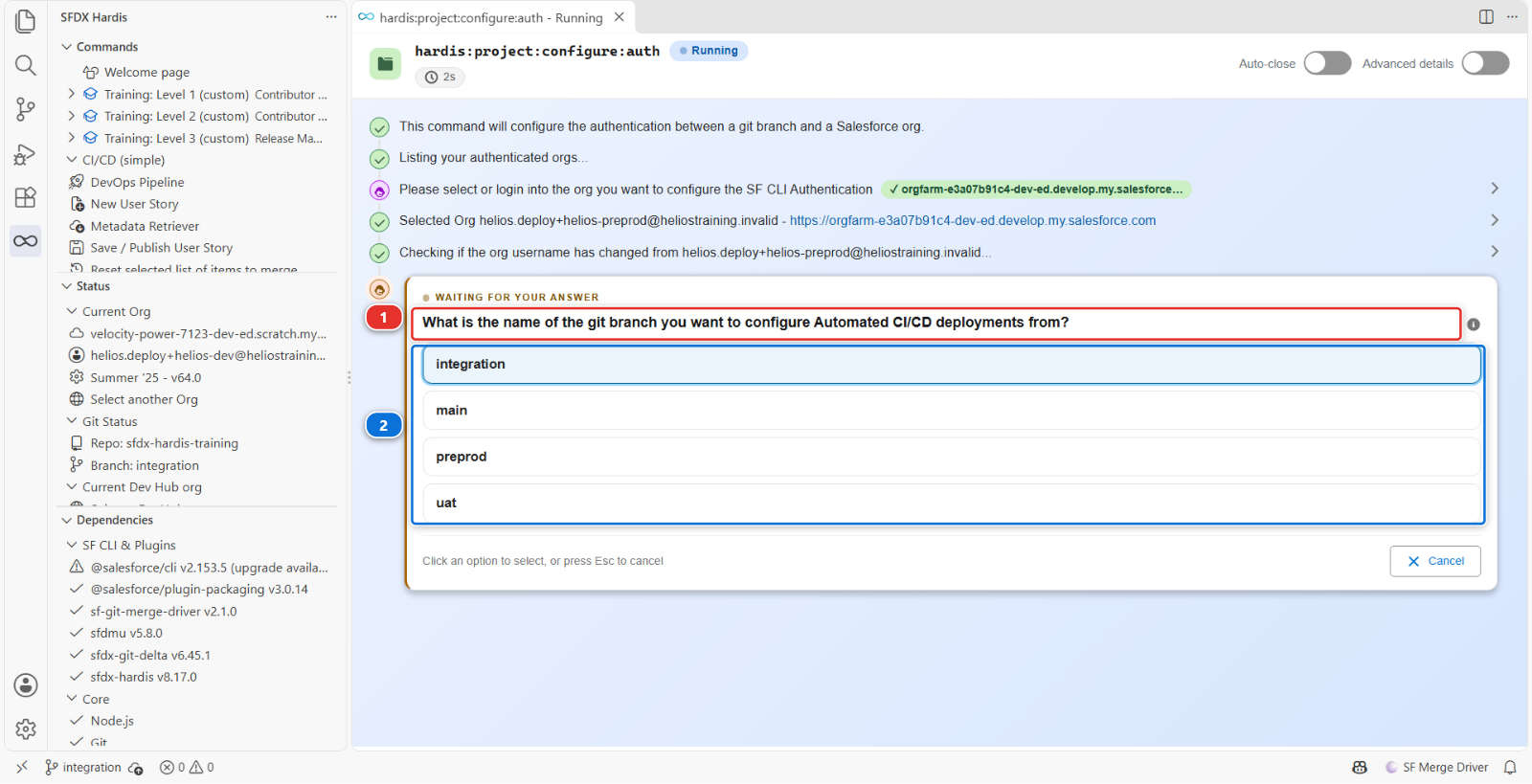

The command runs in a panel and asks one question at a time (1), with the answers to click below it (2). Here it is at the second question, with helios-preprod already chosen.

It asks a dozen questions, in this order:

1. Please select or login into the org you want to configure the SF CLI Authentication - helios-preprod. The command makes it your default org. If it asks for the org a second time, pick helios-preprod again
2. What is the name of the git branch you want to configure Automated CI/CD deployments from? - preprod. The list is built from the branches of your fork, and branches whose name contains a / are left out, which is why your User Story branch is not offered
3. What is the base URL or domain or the org you want to connect to, as preprod related org ? Pick ☢️ Other: Dev org, Production org or DevHub org (login.salesforce.com): helios-preprod is a Developer Edition org, which logs in the way production does. Only scratch orgs and sandboxes use test.salesforce.com. Read the list rather than pressing Enter
4. What are the target git branches that preprod will be able to merge in? - main. This is the merge path of step 1, written as mergeTargets
5. What is the Salesforce username that will be used for deployments by CI server ? - the helios-preprod username, which it offers you already filled in
6. How do you want to provide the SSL certificate? - Generate a self-signed certificate (default). The other answer, CA-signed, generates nothing and only prints instructions
7. Do you want sfdx-hardis to configure the SF CLI External Client App or Connected App on your org ? - yes
8. Which JWT certificate storage mode do you want? - ClientId + decryption key as secret variables + encrypted certificate as file (default). The other mode puts the certificate itself in a third secret and deletes the file
9. Please confirm when variables have been set. This one is a stop, and step 6 is what it is waiting for. It is a Yes or No question: do not answer it yet
10. Three more questions come once you have answered Yes, which is the end of step 6 below, so read them now and answer them then: the name of the External Client App, a contact email, and the profile to pre-authorise. Take System Administrator: it is already selected, so keep it. The list shows the profile names in the language of the org's user, so an org set to French lists Administrateur système instead

6. Store the two secrets, then let the command finish¶

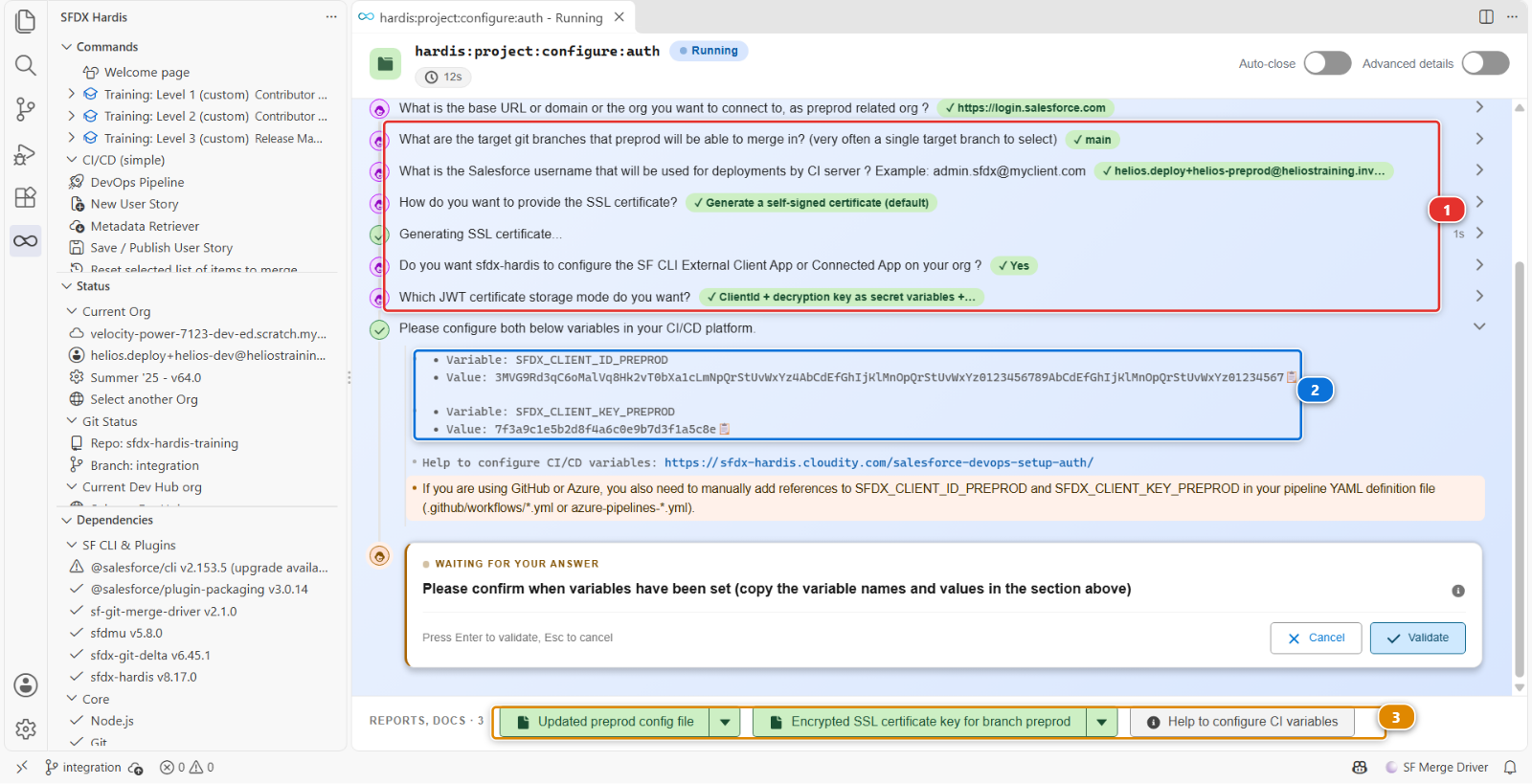

Just above question 9 the panel prints the two values the CI needs (2), each with a copy button. Nothing prints them again, so do not close the panel. The panel keeps every question you answered (1), and the files it wrote are in the reports bar at the bottom (3).

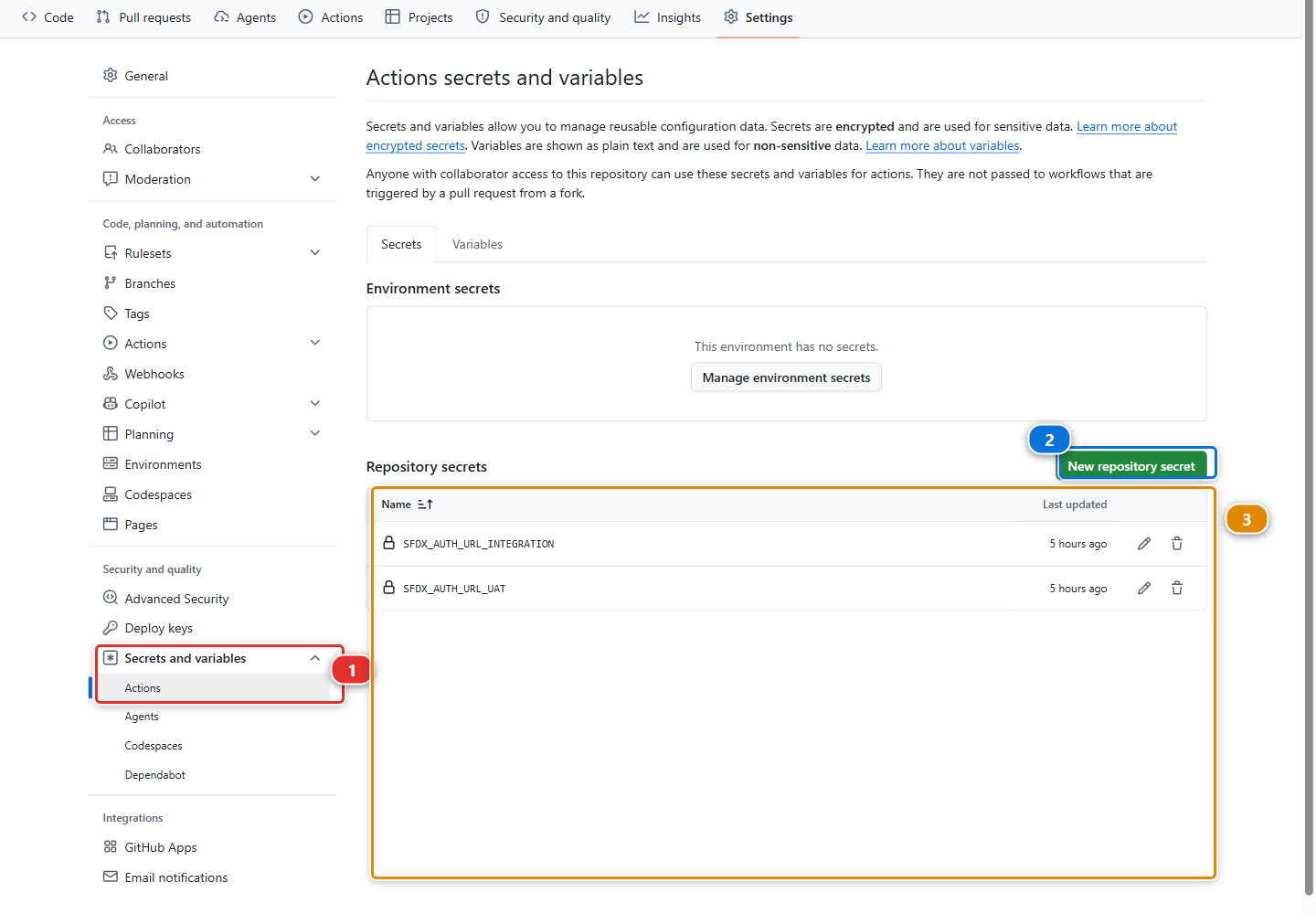

In your fork (github.com/my-username/sfdx-hardis-training), open Settings > Secrets and variables > Actions (1), then click New repository secret (2):

The page lists the names of the secrets the repository holds and never their values (3). Nothing, not even GitHub, can show you a stored value again. That is the whole reason the panel asks you not to close it.

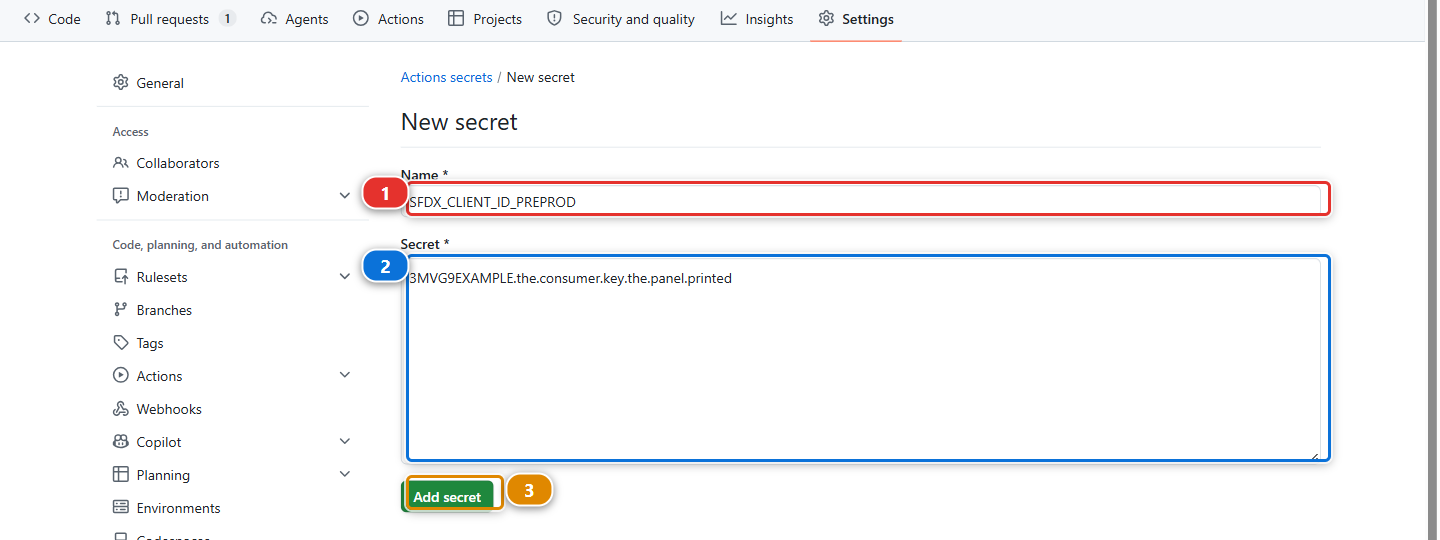

Each secret is one form: the Name (1), the Secret (2) pasted from the panel, then Add secret (3). The first one is SFDX_CLIENT_ID_PREPROD, with the consumer key:

Then the second one. Click New repository secret again, and fill the same form with SFDX_CLIENT_KEY_PREPROD and the passphrase. It is the one people forget, and without it the CI has a key it cannot open:

Back on the list, both names are there. The suffix is the branch name in upper case. That is the whole convention, and it is why the names are not arbitrary.

Now answer Yes to question 9, answer the last three questions, and let the command create the app.

What it wrote, and where:

The private key is encrypted, with a passphrase the command generates at random and that only your secret holds. The repository alone is not enough to authenticate, which is what makes committing the key acceptable.

7. Check the authorisation it did for you¶

The step everybody warns you about, pre-authorising the app, is the one the command already did: the External Client App it deploys carries Admin approved users are pre-authorized and the profile you named at the last question. Look at it once, so you know where it is when it matters.

In helios-preprod: Setup > External Client App Manager, open the app, whose name defaulted to sfdxhardispreprod, then Policies. Permitted Users reads Admin approved users are pre-authorized, and the profile is listed.

It matters because of the one path where it is not done for you: if the app deployment fails and the command falls back to printing manual instructions, those instructions stop at uploading the certificate. Follow them literally and the first CI login fails with user hasn't approved this consumer, an accurate message that reads like a bug.

8. The same for main¶

Same gear, Add/Configure Org, once more, for production:

Check the org twice: pointing production at the wrong org is the single most expensive mistake available in this lab. And store both secrets, the ID and the key, as in step 6.

Four secrets, two External Client Apps, two keys. Tedious once, then never again.

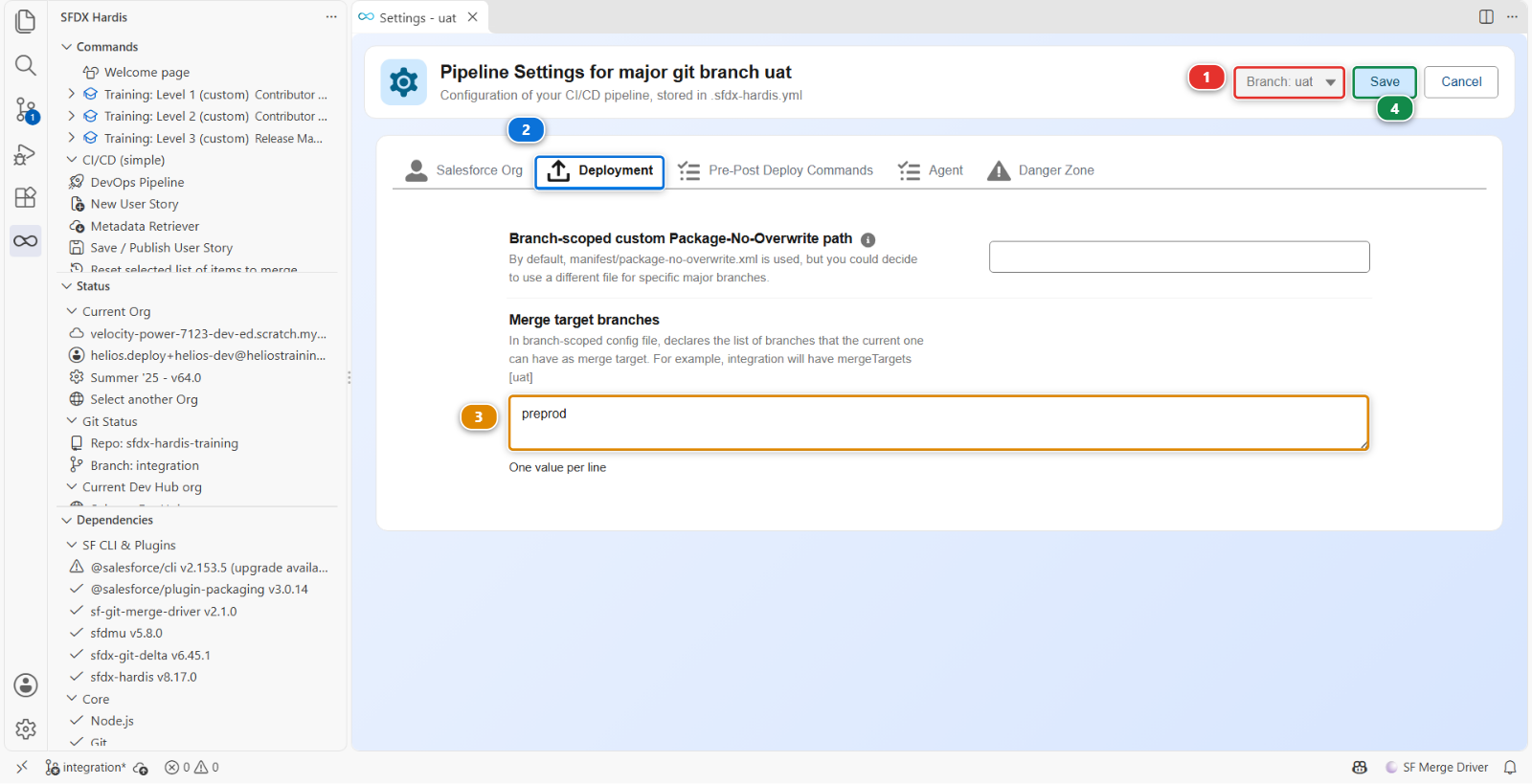

Then tell uat where its work goes next. The command wrote that preprod merges into main. Nothing has said yet that uat merges into preprod: until now uat was the end of the pipeline, and its branch file says so. In the DevOps Pipeline panel, gear menu, Pipeline Settings, switch the scope selector at the top right to Branch: uat (1), open the Deployment tab (2) and click Edit. In Merge target branches (3), type preprod, then Save (4), which took the place of Edit.

Without it the diagram draws no arrow from uat to preprod, and Lab 3.6 has no + PR chip to click there. Step 11 publishes it with the rest.

9. Let contributors start a hotfix¶

Contributors choose where a User Story goes from a list, and preprod is not in it yet.

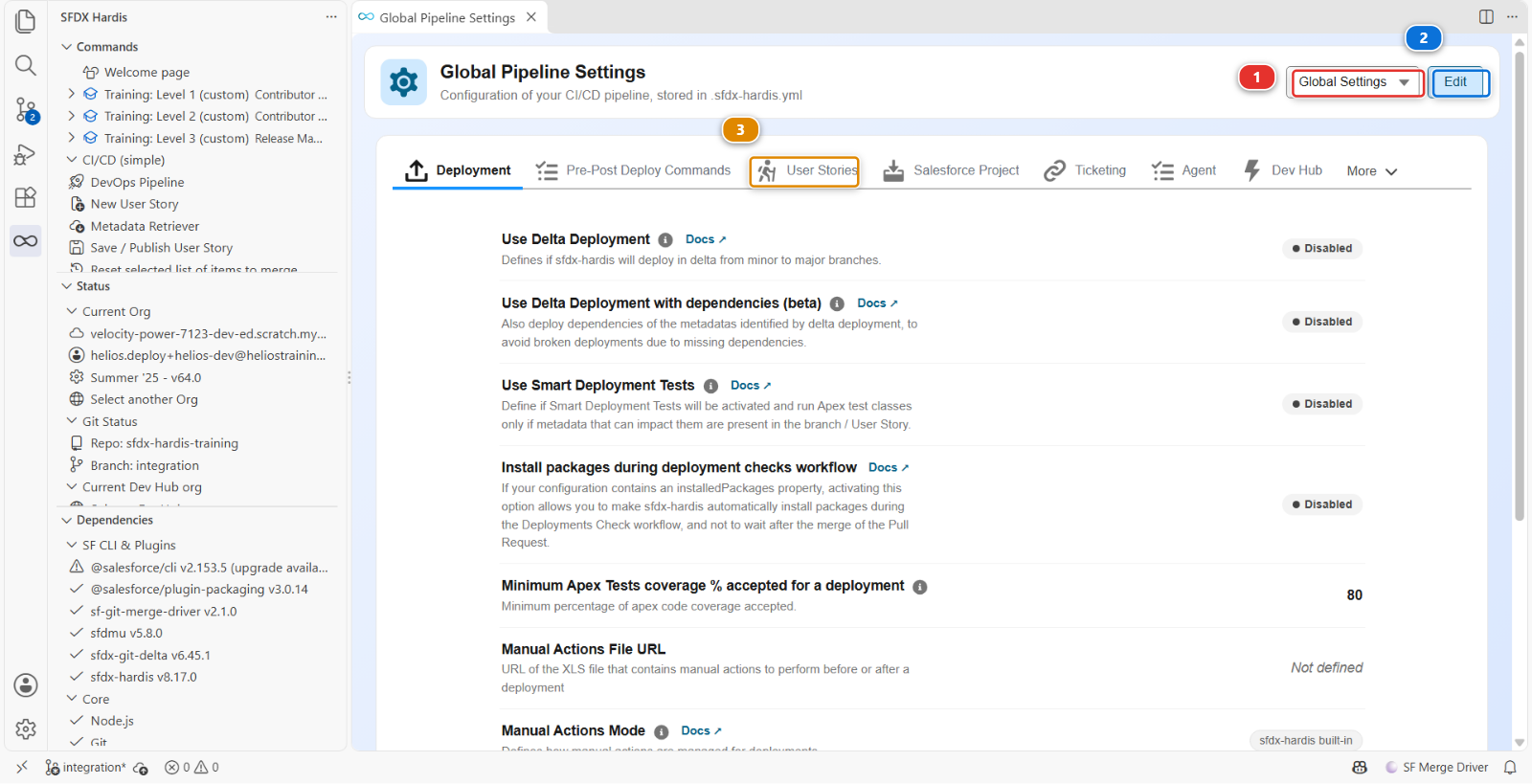

Open the DevOps Pipeline panel, the gear menu, Pipeline Settings. The page title reads Global Pipeline Settings, and the scope selector (1) reads Global Settings.

Click Edit (2), then the User Stories tab (3).

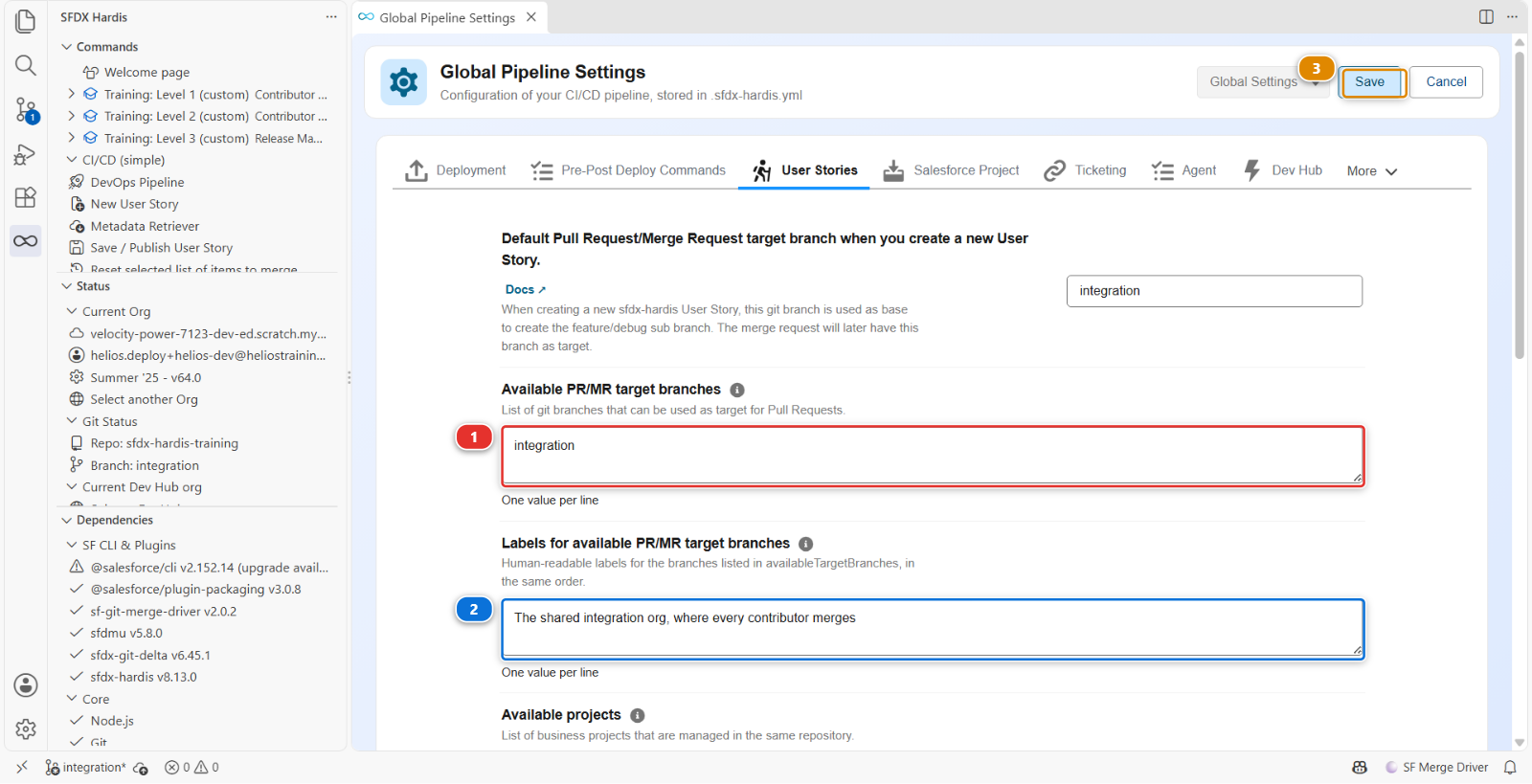

Two fields matter, and they are two separate text boxes, one value per line: Available PR/MR target branches (1) and Labels for available PR/MR target branches (2). Nothing pairs them except their order, so line 2 of one belongs to line 2 of the other.

Today each holds a single line, the one a contributor has been choosing since Level 1. Add a second line to each, in the same position:

uat and main are not in that list, on purpose. Nobody builds a User Story against them: work reaches uat by promotion from integration, and main by promotion from preprod.

Save (3).

10. Switch on promotion branches, for a week you hope not to have¶

One more setting, on the same panel, and it is the only one in this lab you are turning on for something that has not happened yet.

Most weeks a release manager promotes a whole branch: everything that is in uat goes to preprod together, because that is the version the testers tested. Some weeks the business signs off one story and not the one next to it, and the release date does not move. sfdx-hardis has a Beta feature for that week, promotion branches, and Lab 3.10 is where you use it.

Still in Pipeline Settings, scope Global Settings, open the Danger Zone tab.

The tab opens on a warning, Use these settings with caution, be sure to understand their impact as they drift from DevOps best practices, and it is there for every setting on it, this one included.

Click Edit, turn Enable promotion branches (Beta) (1) on, then add one row to Allowed promotion steps (Beta) (2) with Source branch uat and Target branch preprod. Save.

The second setting is required by the first, and it is a real decision rather than paperwork: it says a release manager on this project may assemble a subset on the way into preprod, the stage in front of production, and nowhere else. sf hardis:project:promotion:create refuses to run while the list is missing instead of guessing that every major branch may promote into every other one.

Nothing changes today. With the feature on and no promotion/... branch in the repository, the pipeline behaves exactly as it did a minute ago. It is switched on now because of where the setting has to be by Lab 3.10, and the block below explains why that is not obvious.

enablePromotionBranches: true
allowedPromotionSteps:
  - source: uat
    target: preprod

11. Publish the configuration through a Pull Request¶

Everything you did is files on your disk, on the User Story branch of step 4: the two new branch files, the two keys, the target branches and the two promotion branch settings. They reach integration the way every change does, through a Pull Request with green checks. The protection of step 3 would refuse anything else.

You publish them the way you published a User Story in Level 1, with the same buttons.

Commit them. In the Source Control panel, stage the configuration files and commit them as Configure the pipeline up to production, exactly as you staged metadata in Lab 1.5.

Publish. In the DevOps Pipeline panel, click the Save / Publish card (1), the one every story has gone through since Lab 1.5. It does not ask for the target branch: New User Story recorded integration in step 4. Answer that your commit is ready and that it can push: it commits what is left, runs the cleaning, and pushes the branch.

Open the Pull Request. When it finishes, the actions bar along the bottom starts with Create Pull Request (1). Click it: the extension opens GitHub on the Pull Request page for this branch, already pointing at integration.

The same bar carries the package.xml the command generated (2) and the deployment actions of this Pull Request (3), as in Lab 1.6. This branch changes no metadata, so both are short.

The check of this Pull Request logs into helios-integration, and it still does so with SFDX_AUTH_URL_INTEGRATION, so a green check here says nothing about your keys. They prove themselves the first time a Pull Request goes into preprod and into main, in Lab 3.6, and that lab tells you where to look.

When both checks are green, merge the way the How to merge line of the check comment says: Squash and merge, like every User Story. The configuration still travels to uat, preprod and main with the promotions, as this one commit. Then switch back to integration, from the branch name in the bottom left corner of VS Code, and Pull in the Source Control panel: your integration gets the configuration back, merged.

sf hardis:project:configure:auth

sf org login jwt \
  --client-id $SFDX_CLIENT_ID_PREPROD \
  --jwt-key-file <decrypted key> \
  --username <targetUsername from the branch config> \
  --instance-url <instanceUrl from the branch config> \
  --alias preprod

availableTargetBranches:
  - integration
  - preprod
availableTargetBranchesLabels:
  - "The shared integration org, where every contributor merges"
  - "Hotfixes on the production version, agreed with the release manager"
enablePromotionBranches: true
allowedPromotionSteps:
  - source: uat
    target: preprod

12. Look at the diagram again¶

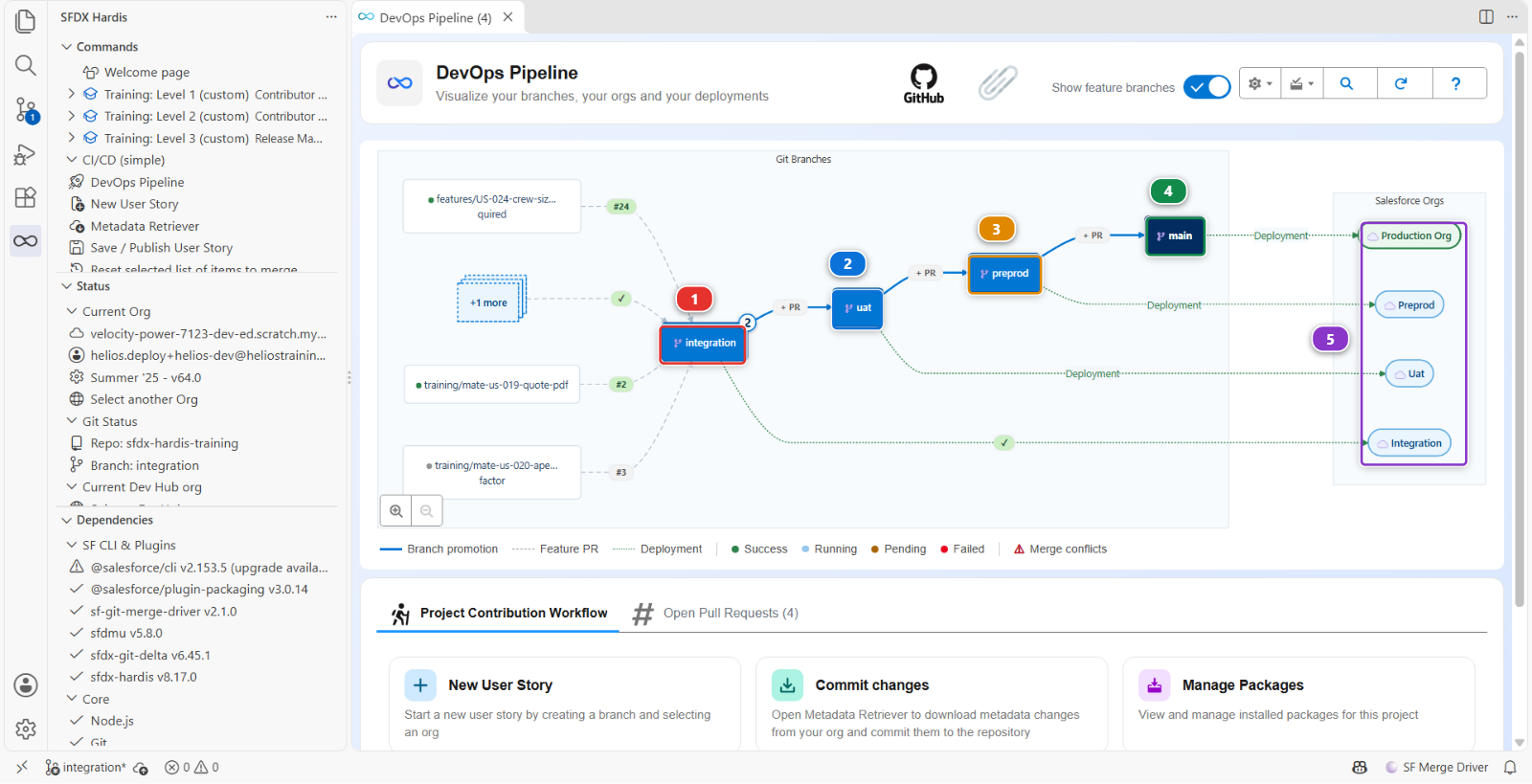

Open the DevOps Pipeline panel and click Refresh. This is the pipeline you built:

1. integration (1), where contributors merge, with the promotion arrow leaving it
2. uat (2), where the business signs off
3. preprod (3), the rehearsal of production, and where hotfixes start
4. main (4), production
5. The four orgs (5), one per branch, in the order the work travels through them

That diagram is now the truth about this project, and the thing you point at when a stakeholder asks "so where is it". The + PR buttons on the arrows are the promotion Pull Requests, and Lab 3.5 is the first time you click one.

What you should see¶

• Four branch protection rules in Settings > Branches of your fork, integration, uat, preprod and main, each requiring a Pull Request and the two checks
• config/branches/ on integration holding four files and two .jwt/*.key files, preprod.key and main.key
• Four new secrets in your fork, SFDX_CLIENT_ID_PREPROD, SFDX_CLIENT_KEY_PREPROD, SFDX_CLIENT_ID_MAIN and SFDX_CLIENT_KEY_MAIN, next to the two auth URL secrets of Level 1
• Your configuration Pull Request merged into integration
• The DevOps Pipeline panel with four columns
• enablePromotionBranches and one allowed step in the Danger Zone of Pipeline Settings, doing nothing until Lab 3.10

Check your work¶

Welcome page > Training: Level 3 > Check my work, then pick Lab 3.1.

Go deeper¶

• Setup Guide
• Configure CI authentication
• GitHub Actions authentication
• Retrieve an existing org

Next: Lab 3.2 - Review and merge a contributor Pull Request
